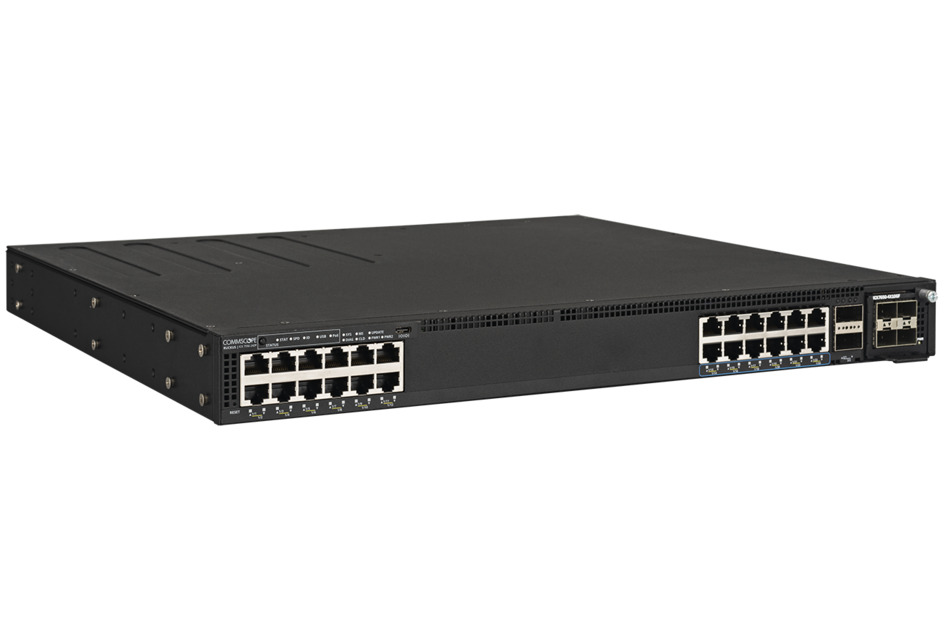

RUCKUS ICX 7550-24XZP
Base Product: ICX7550
Mid-Range Access 24 Ports MultiGigabit PoE Switch
Specifications for RUCKUS ICX 7550-24XZP
![ICX7550-24XZP | RUCKUS ICX 7550-24XZP [RUCKUS ICX 7550-24ZP]](https://productresources.commscope.com/admin/ImageServer.php?ID=06731a74825@pjk349&class=Mamfile&rand=49a0dfab600e537690035241774f56fc&omitPreview=true&downloadname=ICX7550-24ZP_Back.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 1080 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 24 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| 1/2.5/5/10 GbE RJ45 Ports, quantity, maximum | 24 |
| 40 GbE QSFP Ports, quantity, maximum | 4 |
| 100 GbE QSFP28 Ports, quantity, maximum | 2 |
| Switches per Stack, maximum | 12 |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | No |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | Yes |
| BGP | Yes |
| Reversible Airflow Option | Yes |
| VxLAN | Yes |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
