RUCKUS ICX 8200-48PF2
Base Product: ICX8200
Entry-Level+ Access 48 Ports 1G PoE Dual PSU Switch
Specifications for RUCKUS ICX 8200-48PF2

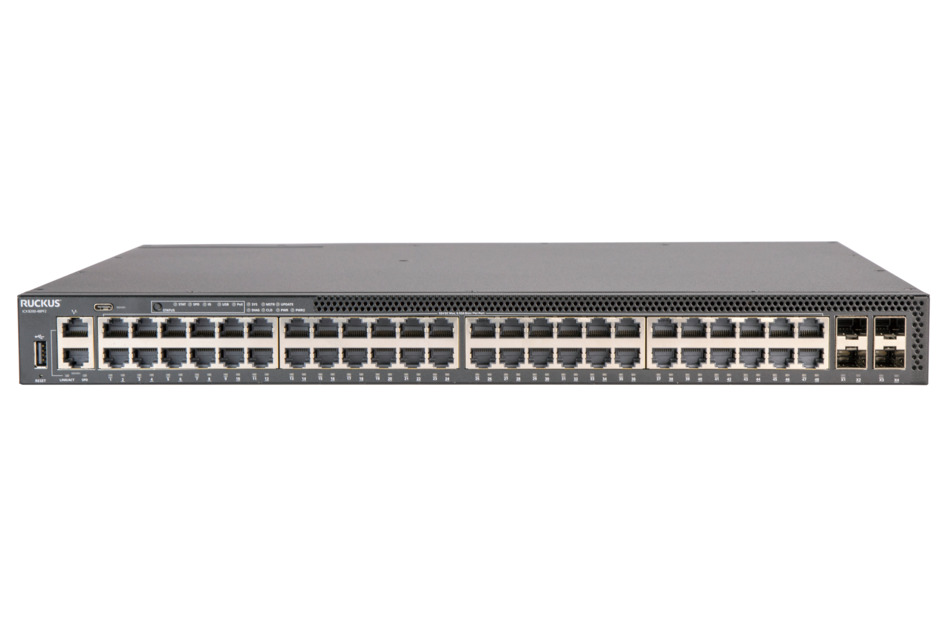

![ICX8200-48PF2 | RUCKUS ICX 8200-48PF2 []](https://productresources.vistancenetworks.com/admin/ImageServer.php?ID=74b2ef8d21674f029da5d4e8438648434d8c93f45a9f2f90ae500dda9bf9f211:51992@kbl572&class=Mamfile&rand=ead01f9c782d029c05d714a0c60f02e2&omitPreview=true&downloadname=0L5A6127+-+ICX+8200-48PF2+-+Back.png&preset=11)
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Ethernet switch |
| Product Brand | RUCKUS® |
General Specifications
| Switching Capacity, maximum | 296 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 48 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| 25 GbE SFP28 Ports, quantity, maximum | 4 |
| PoE Power Budget, maximum | 1440 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 1200 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | No |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | No |
| BGP | No |
| Reversible Airflow Option | No |
| VxLAN | Yes |
| Multi Chassis Trunking (MCT) | No |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
