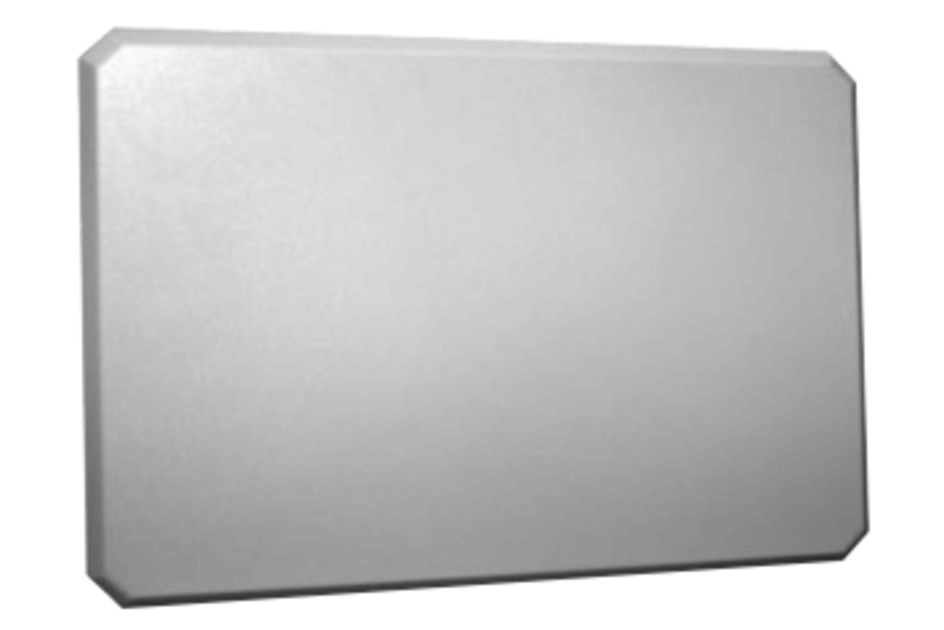

ANT-2120-0000 Antenna

4-Port Directional H/V MIMO Antenna for the T750SE

下载数据表

Specifications for ANT-2120-0000 Antenna

应用场景	远程回程 /PtP/PtMP 非根
Antenna Gain	14 dBi/14.5 dBi
极化	垂直和水平
Bandwidth H/V @ 3 dB	31-33/31-27 degrees
Connector Location	Four N-type located at the back of the unit. No cable included
IP Rating	IP-67
安装	Wall/Pole Mount, mounting kit included
Wi-Fi 频带	2.4 GHz \| 5 GHz

系统尺寸	507 mm × 368 mm × 21.1 mm

工作温度	-40 °C至+70 °C（-40 °F至+158 °F）

重量，净重

2300 g | 5.071 lb
