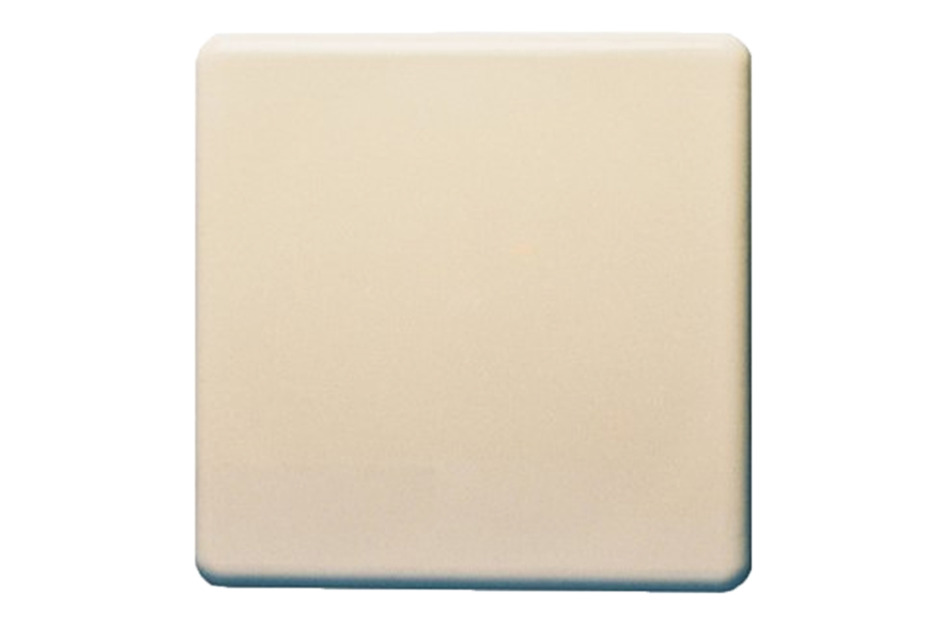

ANT-2140-0000 Antenna

2-Port Directional H/V MIMO Antenna for the T350SE

下载数据表

Specifications for ANT-2140-0000 Antenna

应用场景	远程回程 /PtP/PtMP 非根
Antenna Gain	11 dBi/10.5 dBi
极化	垂直和水平
Bandwidth H/V @ 3 dB	31-33/31-27 degrees
Connector Location	Two N-type located at the back of the unit. No cable included
IP Rating	IP-67
安装	Wall/Pole Mount, mounting kit included
Wi-Fi 频带	2.4 GHz \| 5 GHz

系统尺寸	305 mm × 305 mm × 25 mm

工作温度	-55 °C至+71 °C（-67 °F至+160 °F）

重量，净重

1200 g | 2.646 lb
