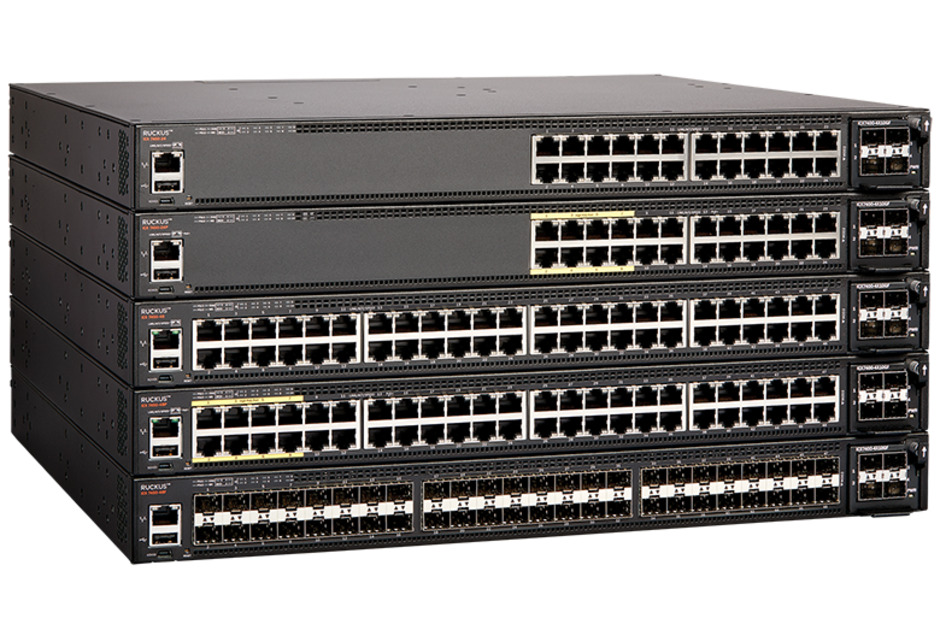

RUCKUS ICX 7450 交换机

Base Product

Mid-Range Enterprise-Class Stackable Access/Aggregation Switch

Configure Product Variants

RUCKUS ICX 7450 Switches Features

The RUCKUS ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network.

The ICX 7450 is an ideal network solution for campus networks requiring 1 GbE access or small aggregation deployments with upgradeable 1GbE, 10 GbE or 40 GbE uplink modules. The switch also makes a suitable data center Top-of-Rack (ToR) solution, providing a ToR access-layer that can be upgraded to run on 10GbE/40GbE in the future with minimum costs and changes to cabling.

The modular design of the switch enables deployment of additional services such as high-performance IPsec encryption to meet increasing compliance and data security requirements.
  • Up to 3 uplink modules with 4 x 1 GbE, 4 x 10 GbE, or 1 x 40 GbE ports
  • 40 GbE standards-based stacking links – no proprietary cables needed
  • PoE/PoE+/PoH (95W) to power video surveillance, VDI terminals, and HD displays
  • Expansion slots accept modules with different uplink speeds and services
  • Site-to-site IPsec VPN service module eliminates dedicated encryption devices
  • Programmable hardware technology, enabling more features to be added to IPsec VPN deployments
  • Suite B algorithms and support for 128-bit and 256-bit AES
  • 10 Gbps throughput per service module
  • Up to 12 switches per stack
  • Up to 10km between stacked switches
  • Stacking connectivity through open standard SFP+ or QSFP+ ports – no special cables needed
  • Stack level ISSU for continuous operations
  • Works seamlessly with RUCKUS Wi-Fi access points
  • RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product VariantsClear

Configure and display product variants of RUCKUS ICX 7450 Switches by selecting options

正在加载……
RUCKUS ICX 7450-24 RUCKUS ICX 7450-24
Mid-Range Access 24 Ports 1G Switch
RUCKUS ICX 7450-24P RUCKUS ICX 7450-24P
Mid-Range Access 24 Ports 1G PoE Switch
RUCKUS ICX 7450-48 RUCKUS ICX 7450-48
Mid-Range Access 48 Ports1G Switch
RUCKUS ICX 7450-48F RUCKUS ICX 7450-48F
Entry-Level Aggregation 48 Ports1G SFP Switch

Specifications for RUCKUS ICX 7450 Switches

ICX7450 | RUCKUS ICX 7450 Switches [icx7450_stack copy]
地区供货情况 亚洲 | 澳大利亚/新西兰 | 欧洲和中东 | 拉丁美洲 | 北美洲
产品类型 以太网交换机
产品品牌 RUCKUS®
Switching Capacity, maximum 336 Gb/s
1 GbE RJ45 Ports, quantity, maximum 48
1 GbE SFP Ports, quantity, maximum 48
10 GbE SFP+ Ports, quantity, maximum 12
10 GbE RJ45 Ports, quantity, maximum 12
40 GbE QSFP Ports, quantity, maximum 3
PoE Power Budget, maximum 1500 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 960 Gb/s
PoE/PoE+
Stacking
sFlow
Layer 3 (STATIC, RIP, OSPF)
OpenFlow with Hybrid Port Mode
Campus Fabric Technology
Redundant Power Option
Hot Swap Internal Power Supplies & Fans
802.3bt2 (90 W PoE Power per Port)
VRF
EEE (Energy Efficient Ethernet)
IPsec VPN, with service module
MACsec
BGP
Reversible Airflow Option
