RUCKUS ICX 7750 交换机

Base Product

High-End Enterprise-Class Stackable Core/Aggregation Switch with 40GbE

Configure Product Variants

RUCKUS ICX 7750 Switches Features

The RUCKUS ICX 7750 delivers chassis performance in the network’s aggregation and core switching operations. The switch’s premier speed and reliability in a flexible scale-out design enables a small deployment to add capacity as needs grow and deliver mission critical application services with complete confidence.

The ICX 7750 provides the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch. The switch delivers faster network response time via wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice or video streaming and Virtual Desktop Infrastructure. Up to 12 ICX 7750 switches can be stacked together to provide terabytes of aggregated stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks.
  • Industry-leading 10/40 Gbps Ethernet port density and flexibility
  • Up to 32x40 GbE or 96x10 GbE ports per unit
  • Up to 5.76 Tbps of aggregated stacking bandwidth with full redundancy
  • Up to 10km between stacked switches
  • 6 full-duplex 40 Gbps stacking ports per switch
  • Software updates without downtime with In-Service Software Upgrades (ISSU)
  • Instantaneous hitless failover
  • Redundant power supplies with hot-swappable, and load-sharing capabilities
  • Flexible distributed chassis stacking architecture
  • Start small and add capacity via stacking as needs grow
  • 1U form factor saves rack space and power in wiring closets
  • Works seamlessly with RUCKUS Wi-Fi access points
  • With RUCKUS SmartZone support delivers unified wired & wireless management

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product VariantsClear

Configure and display product variants of RUCKUS ICX 7750 Switches by selecting options

正在加载……
RUCKUS ICX 7750-26Q RUCKUS ICX 7750-26Q
Mid-Range Core 26 Ports 40G Chassis Replacement Switch
RUCKUS ICX 7750-48C RUCKUS ICX 7750-48C
Mid-Range Aggregation/Core 48 Ports 10G/RJ45 Chassis Replacement Switch
RUCKUS ICX 7750-48F RUCKUS ICX 7750-48F
Mid-Range Aggregation/Core 48 Ports 10G/SFP+ Chassis Replacement Switch

Specifications for RUCKUS ICX 7750 Switches

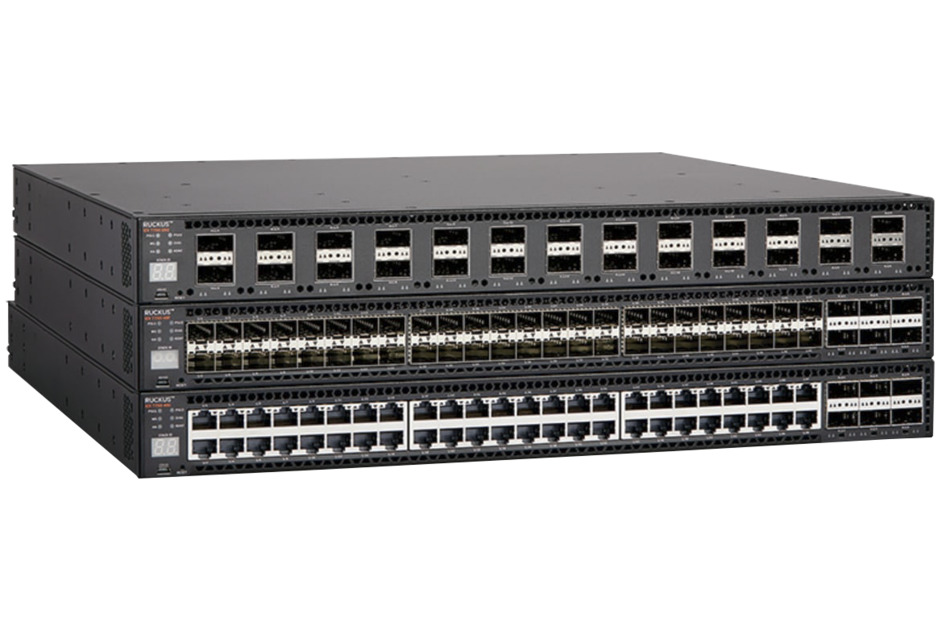

ICX7750 | RUCKUS ICX 7750 Switches [ICX7750_stack_front]
地区供货情况 亚洲 | 澳大利亚/新西兰 | 欧洲和中东 | 拉丁美洲 | 北美洲
产品类型 以太网交换机
产品品牌 RUCKUS®
Switching Capacity, maximum 2560 Gb/s
1 GbE RJ45 Ports, quantity, maximum 48
1 GbE SFP Ports, quantity, maximum 48
10 GbE SFP+ Ports, quantity, maximum 96
10 GbE RJ45 Ports, quantity, maximum 48
40 GbE QSFP Ports, quantity, maximum 32
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 5760 Gb/s
Stacking
sFlow
Layer 3 (STATIC, RIP, OSPF)
OpenFlow with Hybrid Port Mode
Campus Fabric Technology
Redundant Power Option
Hot Swap Internal Power Supplies & Fans
VRF
BGP
Reversible Airflow Option
VXLAN
