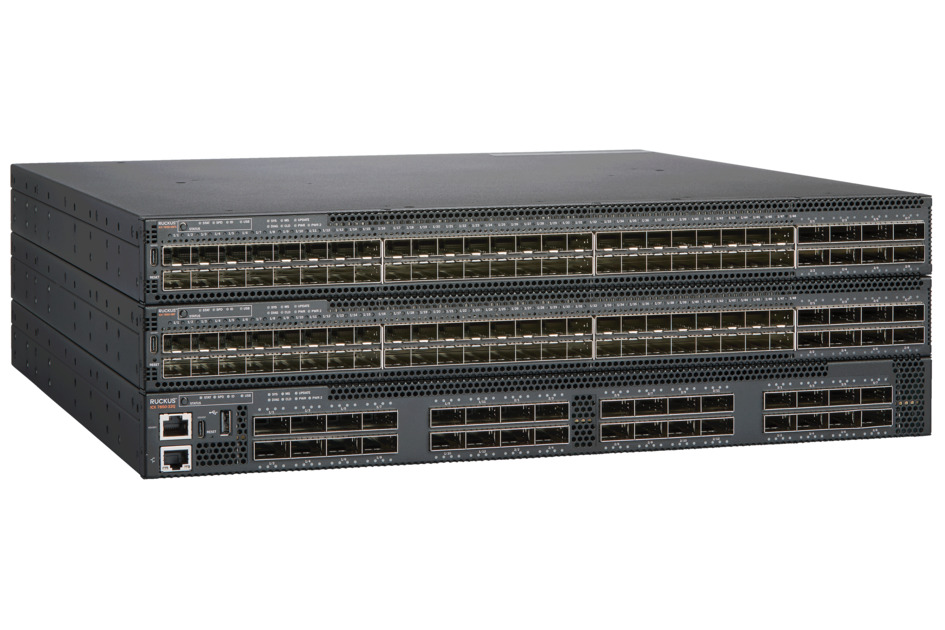

RUCKUS ICX 7850 交换机

Base Product

High-End Enterprise-Class Stackable Core/Aggregation Switch with 100GbE

Configure Product Variants

RUCKUS ICX 7850 Switches Features

Kicking-off the next stage in the fixed form factor revolution:

Superior Scalability: Up 76.8 Tbps of combined switching capacity and 384x 100GbE or 576x 10/25 GbE ports per 12 units’ stack supports the most demanding enterprise environments.

Maximum Flexibility: Network Core connectivity and switching capacity can be distributed wherever it is needed. Does not need to be co-located in a single wiring closet like a traditional chassis.

Advanced Security: 256 bit MACsec delivers maximum data privacy

Pay as you grow: Cost effective deployment model of fixed form factor switches at the network core
  • Industry-leading 40/100 Gbps Ethernet port density and flexibility
  • Up to 32x100 GbE or 128x25 GbE ports per unit
  • Up to 9.6 Tbps of aggregated stacking bandwidth
  • Stacks up to 12 units with up to 10km between stacked switches
  • 8 full-duplex 100 Gbps stacking ports per switch
  • Software updates without downtime with In-Service Software Upgrades (ISSU)
  • Instantaneous hitless failover
  • Redundant power supplies with hot-swappable, and load-sharing capabilities
  • Flexible distributed chassis stacking architecture
  • Start small and add capacity via stacking as needs grow
  • 1U form factor saves rack space and power in wiring closets
  • Works seamlessly with RUCKUS Wi-Fi access points
  • RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product VariantsClear

Configure and display product variants of RUCKUS ICX 7850 Switches by selecting options

正在加载……
RUCKUS ICX 7850-32Q RUCKUS ICX 7850-32Q
High-End Core 32 Ports 100G Chassis Replacement Switch
RUCKUS ICX 7850-48C RUCKUS ICX 7850-48C
High-End 48 Ports 10G BASE-T Chassis Replacement Switch
RUCKUS ICX 7850-48F RUCKUS ICX 7850-48F
High-End Aggregation/Core 48 Ports 25G/SFP24 Chassis Replacement Switch
RUCKUS ICX 7850-48FS RUCKUS ICX 7850-48FS
High-End Aggregation/Core 48 Ports 10G/SFP+ Chassis Replacement Switch with MACsec

Specifications for RUCKUS ICX 7850 Switches

ICX7850 | RUCKUS ICX 7850 Switches [ICX7850-series-stack]
地区供货情况 亚洲 | 澳大利亚/新西兰 | 欧洲和中东 | 拉丁美洲 | 北美洲
产品类型 以太网交换机
产品品牌 RUCKUS®
Switching Capacity, maximum 6400 Gb/s
1 GbE SFP Ports, quantity, maximum 48
10 GbE SFP+ Ports, quantity, maximum 128
25 GbE SFP28 Ports, quantity, maximum 128
40 GbE QSFP Ports, quantity, maximum 32
100 GbE QSFP28 Ports, quantity, maximum 32
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 9600 Gb/s
Stacking
sFlow
Layer 3 (STATIC, RIP, OSPF)
OpenFlow with Hybrid Port Mode
Campus Fabric Technology
Redundant Power Option
Hot Swap Internal Power Supplies & Fans
802.3bt2 (90 W PoE Power per Port)
VRF
BGP
Reversible Airflow Option
VXLAN
Multi Chassis Trunking (MCT)
