RUCKUS R550 室内接入点
Mid-Tier Wi-Fi 6 2x2:2 Indoor Access Point with 1.8 Gbps max rate and Embedded IoT
RUCKUS R550 Indoor Access Point Features
Wi-Fi capacity requirements in classrooms, office spaces, and medium-size venues are rising due to the increase in the number of Wi-Fi connected devices. An increase in bandwidth requirements for applications and an ever-growing assortment of IoT devices puts further strain on already stretched Wi-Fi networks.
The R550 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is our mid- range dual-band, dual-concurrent AP that supports four spatial streams (2x2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.
The R550 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is our mid- range dual-band, dual-concurrent AP that supports four spatial streams (2x2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.
- Stunning Wi-Fi Performance - Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns
- Serve more devices - Connect more devices simultaneously with four MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance
- Converged access point - Allow customers to eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using built-in Bluetooth® Low Energy and Zigbee, and also expand to any future wireless technologies
- Automate Optimal Throughput - ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
- Better Mesh Networking - Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks
- More than Wi-Fi - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and RUCKUS analytics
Specifications for RUCKUS R550 Indoor Access Point

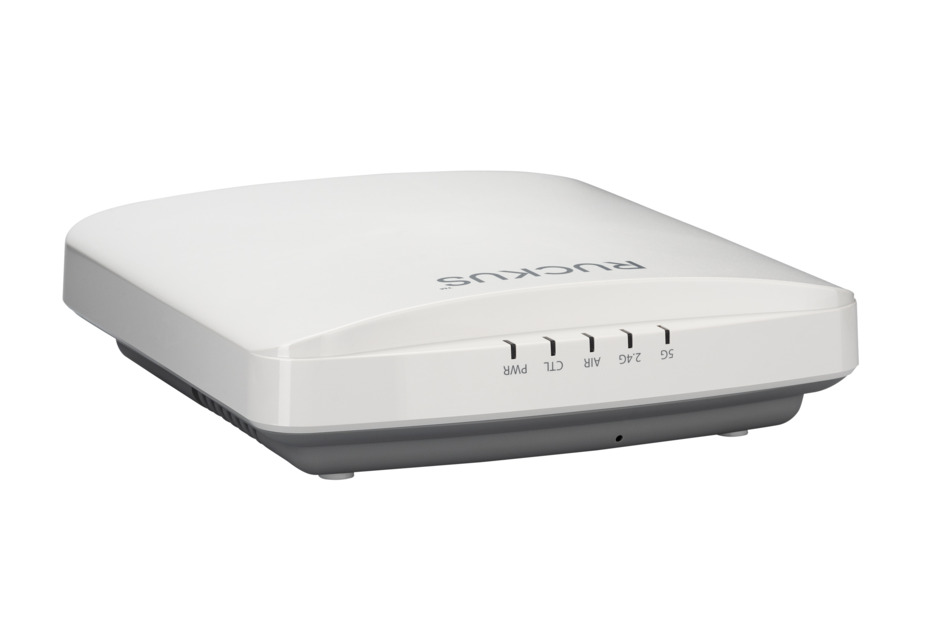

![R550 | RUCKUS R550 Indoor Access Point [R550_Top]](https://www.ruckusnetworks.com/globalassets/digizuite/966262-r550-top.png/medium?mediaformatid=50103)
产品分类
| 地区供货情况 | 亚洲 | 澳大利亚/新西兰 | 欧洲和中东 | 拉丁美洲 | 北美洲 |
| 产品类型 | 室内接入点 |
| 产品品牌 | RUCKUS® |
通用规格
| Antenna Patterns, per band | 64 |
| Antenna Gain | Up to 3 dBi |
| BeamFlex | 是 |
| ChannelFly | 是 |
| 并发用户 | 512 |
| Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone |
| 以太网端口 | 2 x 1 GbE |
| 物联网支持 | 机载物联网 |
| 无线电频段数量 | 双频 |
| PD-MRC | 是 |
| PHY Rate at 2.4 GHz, maximum | 574 Mb/s |
| PHY Rate at 5 GHz, maximum | 1200 Mb/s |
| Combined Max PHY Rate | 1774 Mb/s |
| 无线电链和流 | 2x2:2 |
| Rx Sensitivity at 2.4 GHz | -97 dBm |
| Rx Sensitivity at 5 GHz | -97 dBm |
| SmartMesh | 是 |
| USB | USB 2.0 |
| 场地类型 | 教育 | 酒店业 | 营业处/零售 |
| 场地子类型 | 课堂 | 门厅 | 办公空间 |
| 支持的Wi-Fi频段 | 2.4 GHz | 5 GHz |
| Wi-Fi世代 | Wi-Fi 6 |
| Wi-Fi接口标准 | IEEE 802.11a/b/g/n/ac/ax |
环境规格
| 工作温度 | 0 °C to +50 °C (+32 °F to +122 °F) |
