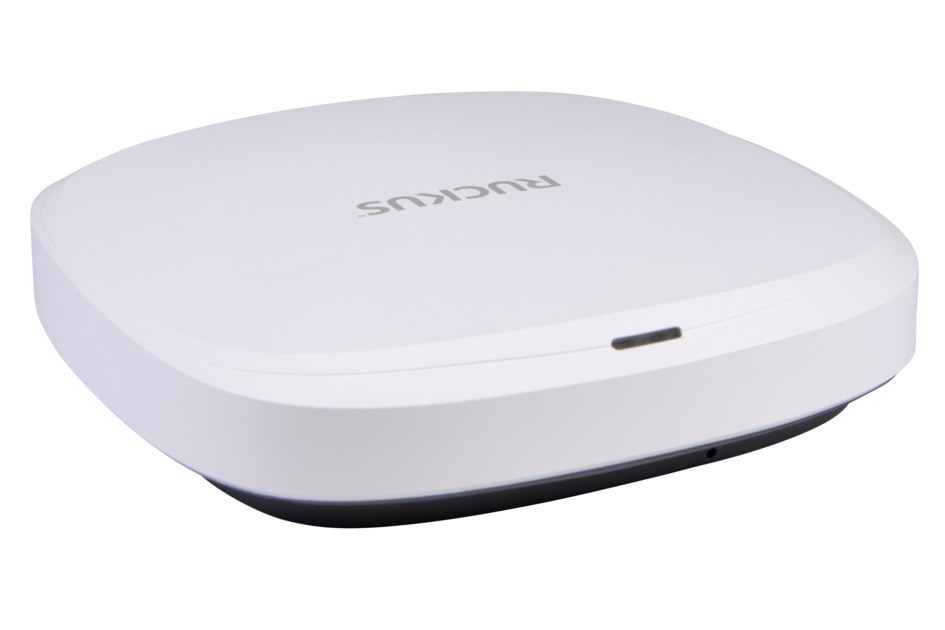

RUCKUS R670 Indoor Access Point Features
The R670 expands the reach of Wi-Fi 7 and addresses the needs of every day deployments, in guest rooms, classrooms, hotel rooms and lobby. It supports data intensive streaming like 4K/8K video transmissions, while latency voice and data with stringent quality-of-service requirements.
The RUCKUS R670 is a high-performance Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps.
Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul for full use of available Wi-Fi capacity. Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.
The RUCKUS R670 is a high-performance Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps.
Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul for full use of available Wi-Fi capacity. Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.
Specifications for RUCKUS R670 Indoor Access Point
产品分类
地区供货情况 | 亚洲 | 澳大利亚/新西兰 | 欧洲和中东 | 拉丁美洲 | 北美洲 |
产品类型 | 室内接入点 |
产品品牌 | RUCKUS® |
通用规格
Antenna Patterns, per band | 4000+ |
Antenna Gain | Up to 4 dBi |
BeamFlex | 是 |
ChannelFly | 是 |
并发用户 | 768 |
Controller Support | RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ |
以太网端口 | 1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE |
物联网支持 | 机载物联网 |
无线电频段数量 | 三频 |
PD-MRC | 是 |
PHY Rate at 2.4 GHz, maximum | 689 Mb/s |
PHY Rate at 5 GHz, maximum | 5765 Mb/s |
PHY Rate at 6 GHz, maximum | 5765 Mb/s |
Combined Max PHY Rate | 9340 Mb/s |
无线电链和流 | 2x2:2 |
Rx Sensitivity at 2.4 GHz | -97 dBm |
Rx Sensitivity at 5 GHz | -100 dBm |
Rx Sensitivity at 6 GHz | -96 dBm |
SmartMesh | 是 |
USB | USB 2.0 |
场地类型 | 教育 | 酒店业 | 营业处/零售 | 公共场所 |
场地子类型 | 会议厅 | 演讲厅 | 中转站 | 场地公共场所 |
支持的Wi-Fi频段 | 2.4 GHz | 5 GHz | 6 GHz |
Wi-Fi世代 | Wi-Fi 7 |
Wi-Fi接口标准 | IEEE 802.11a/b/g/n/ac/ax/be |
环境规格
工作温度 | 0 °C to +50 °C (+32 °F to +122 °F) |
