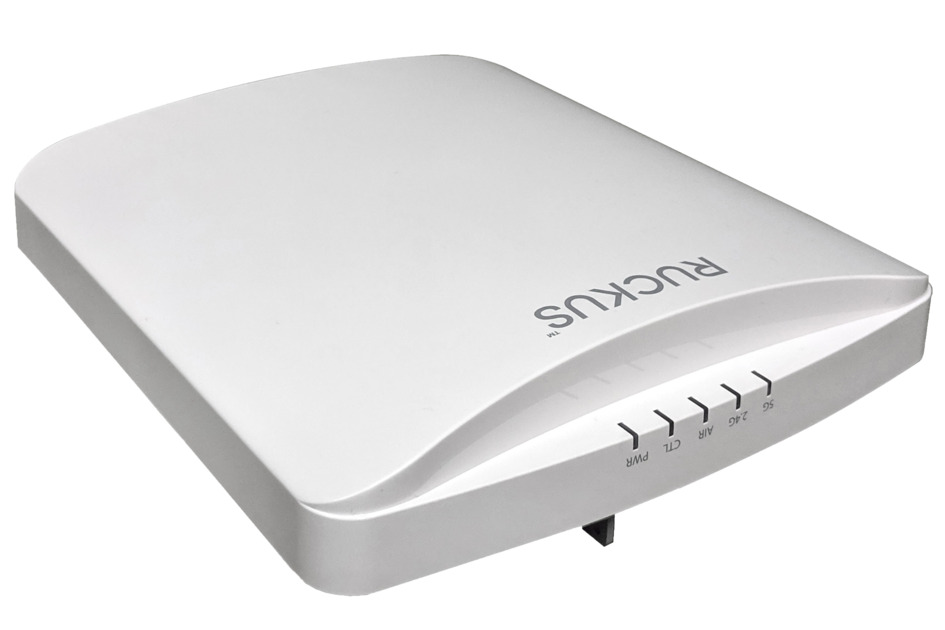

RUCKUS R750 Indoor Access Point Features
The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
Specifications for RUCKUS R750 Indoor Access Point
产品分类
地区供货情况 | 亚洲 | 澳大利亚/新西兰 | 欧洲和中东 | 拉丁美洲 | 北美洲 |
产品类型 | 室内接入点 |
产品品牌 | RUCKUS® |
通用规格
Antenna Patterns, per band | 4000+ |
Antenna Gain | Up to 3 dBi |
BeamFlex | 是 |
ChannelFly | 是 |
并发用户 | 1024 |
Controller Support | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector | Standalone |
以太网端口 | 1 x 1 GbE | 1 x 2.5 GigE |
物联网支持 | 机载物联网 |
无线电频段数量 | 双频 |
PD-MRC | 是 |
PHY Rate at 2.4 GHz, maximum | 1148 Mb/s |
PHY Rate at 5 GHz, maximum | 2400 Mb/s |
Combined Max PHY Rate | 3548 Mb/s |
无线电链和流 | 4x4:4 |
Rx Sensitivity at 2.4 GHz | -102 dBm |
Rx Sensitivity at 5 GHz | -102 dBm |
SmartMesh | 是 |
USB | USB 2.0 |
场地类型 | 教育 | 酒店业 | 营业处/零售 | 公共场所 |
场地子类型 | 咖啡厅/多功能室 | 图书馆 | 大堂/公共空间 | 会议室 | 场地 VIP 室 |
支持的Wi-Fi频段 | 2.4 GHz | 5 GHz |
Wi-Fi世代 | Wi-Fi 6 |
Wi-Fi接口标准 | IEEE 802.11a/b/g/n/ac/ax |
环境规格
工作温度 | 0 °C to +50 °C (+32 °F to +122 °F) |
