RUCKUS ICX 7450-24P

Base Product: ICX7450

Mid-Range Access 24 Ports 1G PoE Switch

Specifications for RUCKUS ICX 7450-24P

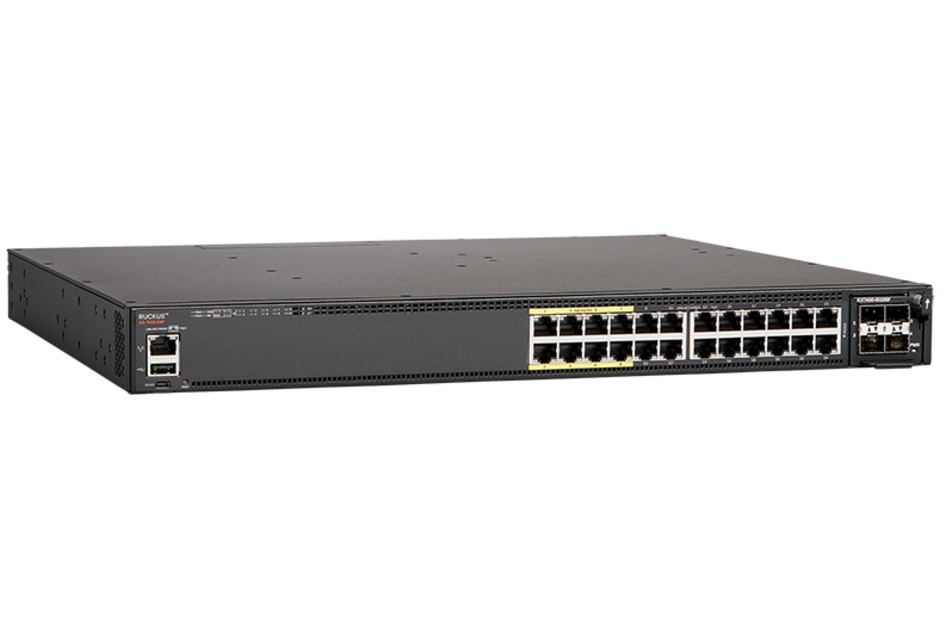

ICX7450-24P | RUCKUS ICX 7450-24P [icx7450-24p_right]
地区供货情况 亚洲 | 澳大利亚/新西兰 | 欧洲和中东 | 拉丁美洲 | 北美洲
产品类型 以太网交换机
产品品牌 RUCKUS®
Switching Capacity, maximum 288 Gb/s
1 GbE RJ45 Ports, quantity, maximum 24
1 GbE SFP Ports, quantity, maximum 4
10 GbE SFP+ Ports, quantity, maximum 12
10 GbE RJ45 Ports, quantity, maximum 12
40 GbE QSFP Ports, quantity, maximum 3
PoE Power Budget, maximum 1500 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 960 Gb/s
PoE/PoE+
Stacking
sFlow
Layer 3 (STATIC, RIP, OSPF)
OpenFlow with Hybrid Port Mode
Campus Fabric Technology
Redundant Power Option
Hot Swap Internal Power Supplies & Fans
802.3bt2 (90 W PoE Power per Port)
VRF
EEE (Energy Efficient Ethernet)
IPsec VPN, with service module
MACsec
BGP
Reversible Airflow Option
VXLAN
Multi Chassis Trunking (MCT)
机构 分类
ROHS 符合/豁免
CHINA-ROHS 超过最高浓度值
UK-ROHS 符合/豁免
