RUCKUS ICX 7850-48F

Base Product: ICX7850

High-End Aggregation/Core 48 Ports 25G/SFP24 Chassis Replacement Switch

Specifications for RUCKUS ICX 7850-48F

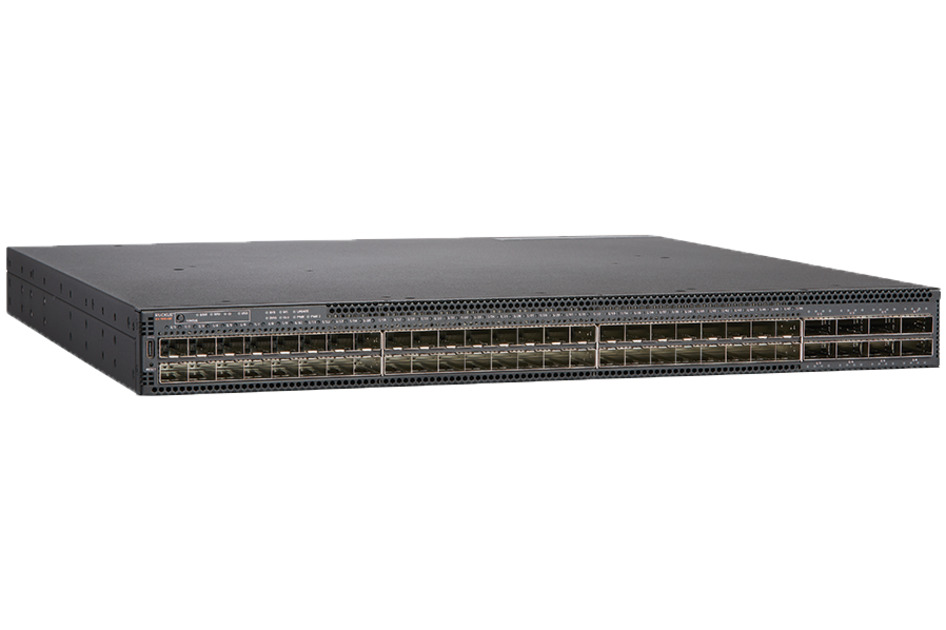

ICX7850-48F | RUCKUS ICX 7850-48F [ruckus-icx-7850-48f-lowres]
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Ethernet switch
Product Brand RUCKUS®
Switching Capacity, maximum 4000 Gb/s
1 GbE SFP Ports, quantity, maximum 48
10 GbE SFP+ Ports, quantity, maximum 48
25 GbE SFP28 Ports, quantity, maximum 48
40 GbE QSFP Ports, quantity, maximum 8
100 GbE QSFP28 Ports, quantity, maximum 8
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 9600 Gb/s
PoE/PoE+ No
Stacking Yes
sFlow Yes
Layer 3 (STATIC, RIP, OSPF) Yes
OpenFlow with Hybrid Port Mode Yes
Campus Fabric Technology Yes
Redundant Power Option Yes
Hot Swap Internal Power Supplies & Fans Yes
VRF Yes
BGP Yes
Reversible Airflow Option Yes
VxLAN Yes
Multi Chassis Trunking (MCT) Yes
Agency Classification
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
UK-ROHS Compliant/Exempted
